1

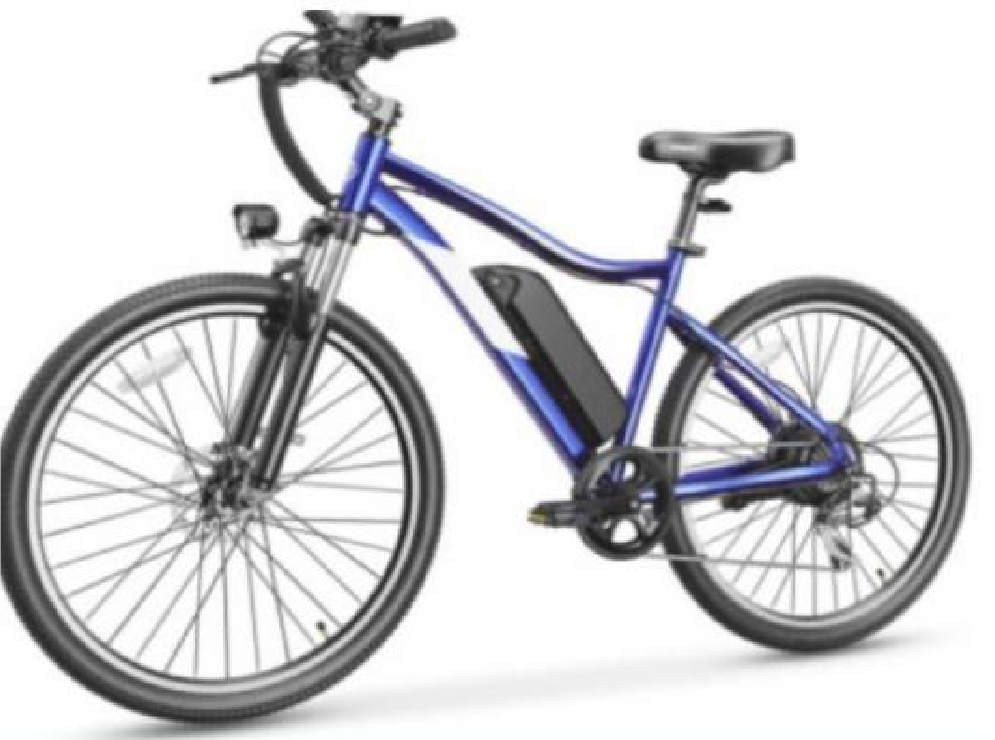

操 控 類

Headset. Control Category

車架Frame

6066 鋁合金車架6066 aluminum alloy frame

27.5 寸 ， 電機 350W ，開檔依電機圖紙 ，片式安裝27.5-inch, 350W motor, fork spacing according to motor drawings, plate-mounted.

2

前叉Fork

27,5 山地全鋁彈簧減震

27.5-inch full-aluminum mountain bike with spring suspension.

3

車頭碗Headset

KLB482

Φ28.6*50*30   H:14 附太陽花上壓蓋

Φ28.65030, H:14, with sunflower upper cover.

4

墊圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

五通

bottom bracket shell

正反牙 ，球架 ，配中軸螺絲 ， 中軸長度 68

Reversed and normal threads, ball cage, with bottom bracket screws, bottom bracket length: 68mm.

6

車把Handlebar

22.2  中間擠凸  31.8  長 ：630mm

22.2 (with middle convex extrusion), 31.8, length: 630mm.

7

把立Stem

F-012

Φ31.8* Φ28.6   100mm

8

把套Handlebar grip

黑色 ，一體硅膠把套

Black, one-piece silicone handlebar grips.

9

鞍座Saddle

運動型鞍座 ，黑弓   Sport-style saddle, black rails.

10

鞍管夾Saddle clamp

黑色 ， 30,4    Black， 30,4

11

鞍管

Seat post

Φ27,2 ， 300 長度 ，帶刻度啞黑

Φ27.2, length 300mm, with scale, matte black.

12

腳踏Pedal

LU-984DU

107*96*28MM  2DU  硼鋼  塑料 散珠

107*96*28MM  2DU  boron steel and plastic, loose balls

13

剎車類

Brake Category

剎把Brake lever

3520

鋁手柄縮仔黑色配 22.2 車把 ，二芯斷電線長不含防水插件 270mm(防水線我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

? Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

碟剎Disc brake

機械碟剎 F/R  碟盤:Φ180  ALLOY  主體烤漆霧黑色分體式安裝  附螺絲

Mechanical disc brakes (F/R), disc diameter: Φ180, alloy material, main body in matte black paint, split-type mounting, with screws included.

15

傳動類

Transmission Category

齒盤Chainring

1/2 × 3/32"  48T 鐵齒+PVC 黑色半罩黑色鋁曲柄 170mm9/16"（曲柄飛輪一體）

1/2 × 3/32" 48T iron teeth + PVC black half-cover, black aluminum crankset 170mm 9/16" (crankset and freewheel integrated).

16

鏈條Chain

Z7

1/2 × 3/32 × 140L  PPO 接頭

1/2 × 3/32 × 140L, with PPO connector.

17

輪胎Tire

27,5"*1.75" 電動車用  內外胎 加長美嘴27,5"*1.75" electric bike tire and inner tube with extended Schrader valve.

18

前輪圈

Front rim

27,5” ，鋁圈。 13G*36 孔加長美嘴

27,5", aluminum rim. 13G*36 holes with extended Schrader valve.

19

后輪圈

Rear rim

27,5” ，鋁圈。 12G*36 孔加長美嘴

27,5”, aluminum rim. 12G*36 holes with extended Schrader valve.

20

襯帶Tube

尼龍襯帶 27,5     Nylon tube27,5

21

輻條前

Front spokes

13G*黑色 附加長銅頭 6mm SUS 4 交叉+編圈

13G black spokes with extended 6mm SUS copper nipples, 4-cross lacing + wheel building.

22

輻條后

Rear spokes

12G長 ，黑色  附加長銅頭 6mm SUS 2 交叉

12G long, black spokes with extended 6mm SUS copper nipples, 2-cross lacing.

23

前花鼓

Front hub

3/8*12G*36H *100W 135L 鋁： B47F

3/812G36H*100W 135L, aluminum material: B47F.

24

整 車 類

Vehicle Category

前泥板

Front fender

27.5

PVC 材質 ，27.5 寸 ，支棍長度可調

PVC material, 27.5 -inch, adjustable strut length.

25

后泥板Rear fender

PVC 材質 ，27.5 寸 ，支棍長度可調

PVC material, 27.5 -inch, adjustable strut length.

26

停車架Parking rack

26 寸 ALLOY  L215(鉚釘?shù)絻?nèi)側底端面）

26-inch, ALLOY, L215 (from rivet to inner bottom end face)

27

指撥Shifters

三芯轉把 ，右手安裝

Three-core twist grip, right-hand installation.

28

變 速 類

Transmission Category

變速指撥Gear shifters

ARDM310DLC

七速指撥 ， 山地車分體變速器

7 - speed Trigger Shifter, Mountain Bike Detachable Derailleur

29

飛輪

Freewheel

ASLM3157RC

七速旋飛輪 ，齒比 14,16,18,21,24,28T

7 - speed Freewheel, Gear Ratios 14T, 16T, 18T, 21T, 24T, 28T

30

撥鏈器Derailleur

AMFTZ5007428

七速后撥鏈器 ， 山地車通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

31

變速線Shift cable

SP

1890MM

32

前剎車線Frontbrake cable

SP

1000MM

33

后剎車線Rear brake cable

SP

1700MM

34

輪反光片

Wheel

XPJ-4402-02,反射器,美標 +車把反光 ，后反光 4 個

XPJ-4402-02, Reflectors, US Standard + Handlebar Reflectors, Rear Reflectors, 4 pcs.

35

電  器 類

Electrical Appliance Category

電機Motor

750W

27.5 寸無刷高速有霍爾，負載 25KM/H 以上 ， 48V/750W Φ 12 × 12G × 36H × 190*260 黑色外殼大九芯防水線 出線長 ：250+950MM壓端子 SM-6A（1 ：紅 2 ：黃 3 ：藍 4： 綠 5 ：黑 6： 白） ，外 7 速旋飛 碟剎內置速度 1 粒磁鋼

27.5-inch brushless high-speed motor with hall sensor, load speed over 25KM/H, 48V/750W.

Dimensions: Φ12×12G×36H×190*260, black casing.

9-core large waterproof cable outlet, length: 250+950MM, crimped terminal SM-6A (1: red, 2: yellow, 3: blue, 4: green, 5: black, 6: white).

External 7-speed freewheel, disc brake, built-in 1 magnetic steel for speed sensing.

36

控制器

Controller

48V

2 號協議 正旋波 9 管控制器 25A 電流  功能要求 ：轉把：轉把不受檔位控制 助力：0-5 檔開機默認 1 檔   前后燈由 多功能開關控制出大燈線 尾燈線

2nd protocol, sine wave, 9-tube controller, 25A current.

Functional requirements:

? Throttle: Uncontrolled by gear positions.

? Pedal assist: 0-5 gears, defaulting to gear 1 on startup.

? Front and rear lights: Controlled by a multi-function switch, with headlight and taillight wires.

37

儀表Meter

P6

2 號協議 LCD 液晶面板   48V    線長： 300 ㎜   不含防水插 件 0-5 檔,開機默認一檔黑色帶 USB 充電孔

Protocol 2: LCD liquid crystal panel

48V wire length: 300 mm

Without waterproof plug-in

0-5 gears, default to gear 1 when powered on

Black with USB charging port

38

速度傳感

Speed sensor

一體式 ，左側安裝，

Integrated Type, Left-side Installation

39

大燈Headlight

分體式支架安裝，

Split-type bracket installation

40

電池盒Battery box

海龍

Hailong

山山電池盒 ， 18650 電芯 ，含支架 ，帶控制器盒

Shanshan battery box, 18650 battery cells, including bracket, with controller box.

41

電池Battery

48V12.5AH

電芯 21700 配佳能二號電池盒充電孔 DC2.1 配放電線長 400mm 正負 4.0 子彈公頭 負 ：4.0 子彈母頭

Cell: 21700  With Canon No.2 battery box, charging port: DC2.1  Discharge wire length: 400mm  Positive: 4.0 bullet male connector  Negative: 4.0 bullet female connector

42

充電器

Charger

鋰電充電器輸出48V/2A 充電口 DC2.1  電源插頭 UL

Lithium battery charger:

? Output: 48V/2A

? Charging port: DC2.1

? Power plug: UL certified

43

輔 料 類

Auxiliary Material Category

總成線

Assembly wire

一托四

One-to-four.

功能要求 ：儀表 ，剎把 ，轉把 上方出線不含防水插件

Functional requirements:

? Instruments, brake levers, throttles

? Cable outlet above the components (excluding waterproof plugs)

44

儀表線

Instrument cable

HT-F-Z509BG 五芯線長

HT-F-Z509BG five-core wire length.

45

剎把線

brake lever cable

HT-F-Z209BG 二芯線長

HT-F-Z209BG two-core wire length.

46

指撥線

Trigger shifter cable

HT-F-Z309BG 三芯線長

HT-F-Z309BG three-core wire length.

47

水標

Water decal

水標  單套： 5.5 +開模  500

Water decal:  Single set: 5.5 + mold opening fee 500

48

說明書

Instruction manual

全英文版  按客戶要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

49

小五金ardware

見附表 1  Refer to Schedule 1.

50

烤漆Paint

電池盒+車架,2 遍底漆

Battery box + frame, two coats of primer.

51

扎帶（小）Small cable ties

4*100

52

C 型線卡C-type cable clips

53

膠帶Tape

50*1000

54

珍珠棉Pearl cotton

1100*10

55

小內盒Small inner box

長寬高 150*150*125

Length, width and height150*150*125

56

紙箱Carton

不含開版費

Excluding plate-making fee.
