1

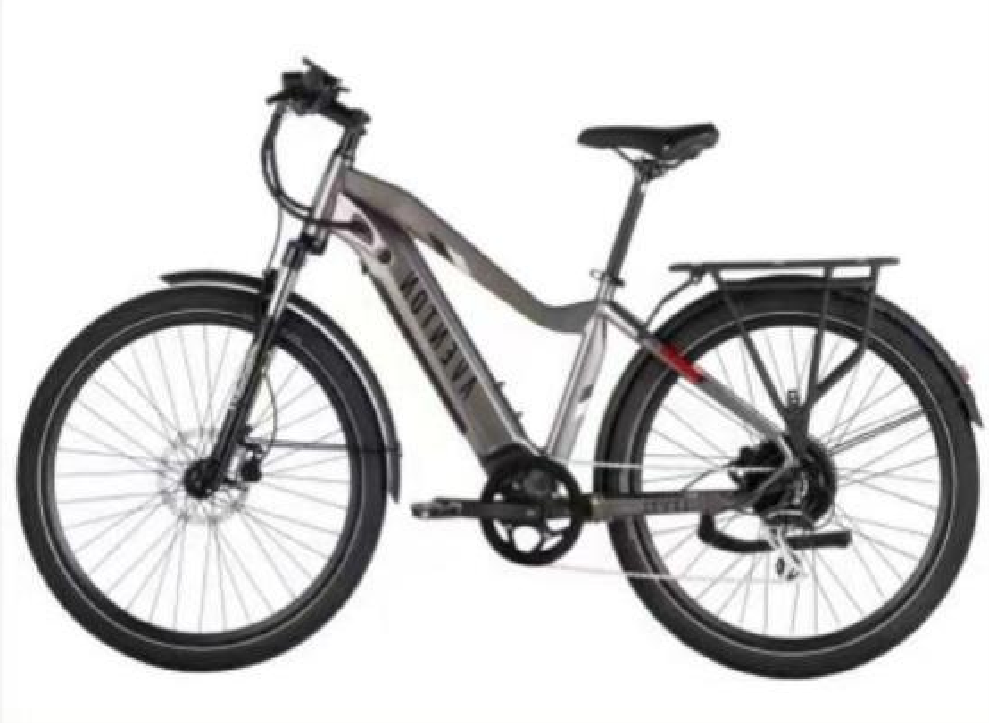

操  控  類

Headset. Control Category

車架Frame

6066 鋁合金車架

6066 aluminum alloy frame

26 寸，電機 750W，勾爪加厚，開檔依電機圖紙，柱式安裝， 全車需補土

26-inch, 750W motor, thickened dropout, fork spacing according to motor drawings, column-mounted, full vehicle needs putty.

2

前叉Fork

26 山地全鋁油壓，機械鎖死，帶泥板安裝位置，油管限位孔

26-inch full-aluminum mountain bike front fork with oil pressure damping, mechanical lockout, fender mounting positions, and oil tube limiting holes.

3

車頭碗Headset

KLB482

Φ28.6*50*30   H:14 附太陽花上壓蓋

Φ28.65030, H:14, with sunflower upper cover.

4

墊圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

68 五通

68mm bottom bracket shell

雙邊力矩 ， 防水線長 150mm ， 出四芯母端

Dual-sided torque, waterproof wire length 150mm, with four-core female terminal.

6

車把Handlebar

22.2 中間擠凸  31.8 長 ：630mm

22.2 (with middle convex extrusion), 31.8, length: 630mm.

7

把立Stem

F-012

Φ31.8* Φ28.6   100mm

8

把套Handlebar grip

黑色 ，雙邊鋁環 ，帶黑色尾塞

Black, with double-sided aluminum rings and black end plugs.

9

鞍座Saddle

運動型鞍座 ，黑弓   Sport saddle, black rails.

10

鞍座管Seat post

Φ27,2 ， 300 長度 ，帶刻度啞黑

Φ27.2, length 300mm, with scale, matte black.

座管夾Seat post clamp

Φ30.4mm

11

腳踏Pedal

LU-984DU

107*96*28MM 2DU 硼鋼 塑料 散珠

107*96*28MM 2DU boron steel and plastic, loose balls

12

剎車類

Brake Category

剎把Brake lever

3520

鋁手柄縮仔黑色配 22.2 車把 ，二芯斷電線長不含防水插件 270mm(防水線我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

? Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

13

碟剎Disc brake

機械碟剎 F/R  碟盤:Φ180 ALLOY  主體烤漆霧黑色 前柱式按裝后側式按裝 附螺絲Aluminum handlebar grip (shrunk type, black), compatible with 22.2mm handlebars.? Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

傳動類

Transmission Category

齒盤Chainring

1/2 × 3/32"  48T 鐵齒+PVC 黑色半罩黑色鋁曲柄 170mm9/16"

1/2 × 3/32" 48T iron teeth + PVC, black half cover, black aluminum crankarms, 170mm, 9/16".

15

鏈條Chain

Z7

1/2 × 3/32 × 140L PPO 接頭

1/2 × 3/32 × 140L, with PPO connector.

16

輪胎Tire

26"*1.75" 電動車用    內外胎加長美嘴

26"*1.75" electric bike tire and inner tube with extended Schrader valve.

17

前輪圈Front rim

26” ，鋁圈。 13G*36 孔加長美嘴

26", aluminum rim. 13G*36 holes with extended Schrader valve.

18

后輪圈Rear rim

26” ，鋁圈。 12G*36 孔加長美嘴

26", aluminum rim. 12G*36 holes with extended Schrader valve.

19

襯帶Tube

尼龍襯帶 20"*70W 對折長度 615mm

Nylon tube, 20"*70W, folded length: 615mm.

20

輻條前

Front spokes

13G*黑色 ，附加長銅頭 6mm SUS   4 交叉  +編圈

13G black spokes with extended 6mm SUS copper nipples, 4-cross lacing + wheel building.

21

輻條后

Rear spokes

12G 長 ，黑色 ， 附加長銅頭 6mm SUS   2 交叉

12G long, black spokes with extended 6mm SUS copper nipples, 2-cross lacing.

22

前花鼓

Front hub

3/8*12G*36H *135W 175L     鋁： B47F    18.48 元/個

3/812G36H*135W 175L, aluminum: B47F, ￥18.48 each.

23

整  車  類Vehicle category

前泥板

Front fender

26

PVC 材質 ，26 寸 ，支棍長度可調

PVC material, 26-inch, adjustable strut length.

24

后泥板

Rear fender

PVC 材質 ，26 寸 ，支棍長度可調

PVC material, 26-inch, adjustable strut length.

后椅架

Rear rack

鋁手柄縮仔黑色配 22.2 車把 ，二芯斷電線長不含防水插件 270mm(防水線我司提供）

Aluminum handle shrinker in black, compatible with 22.2mm handlebars. Two-core disconnect wire length (excluding waterproof plug): 270mm (waterproof wires provided by our company).

25

停車架

Kickstand

26 寸  ALLOY  L215(鉚釘到內側底端面）

26-inch, ALLOY, L215 (from rivet to inner bottom end face)

27

指撥Shifters

三芯轉把 ，右手安裝Three-core twist grip, right-hand installation.

28

變  速  類Transmission category

變速指撥Gear shifters

ARDM310DLC

七速指撥 ， 山地車分體變速器7 - speed Trigger Shifter, Mountain Bike Detachable Derailleur

29

飛輪Freewheel

ASLM3157RC

七速旋飛輪 ，齒比 14,16,18,21,24,28T

7 - speed Freewheel, Gear Ratios 14T, 16T, 18T, 21T, 24T, 28T

30

撥鏈器Derailleur

AMFTZ5007428

七速后撥鏈器 ， 山地車通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

31

變速線Shift cable

SP

1890MM

32

輪反光片Wheel reflector

XPJ-4402-02,反射器,美標 +車把反光 ，后反光        4 個

XPJ-4402-02, Reflectors, US Standard + Handlebar Reflectors, Rear Reflectors, 4 pcs.

33

電   器  類Electrical category

電機Motor

750W

26 寸無刷高速有霍爾 ，負載 45KM/H 以上 ， 48V/750W   Φ 12 × 12G × 36H × 190*260 黑色外殼大九芯防水線  出線長 ：250+950MM 壓端子 SM-6A（1 ：紅 2 ：黃 3 ：藍 4：綠 5 ：黑 6： 白），外 7 速旋飛碟剎內置速度 1 粒磁鋼

26-inch brushless high-speed hub motor with hall sensors, capable of maintaining over 45KM/H under load. Specifications: 48V/750W, Φ12×12G×36H×190*260 black casing. Equipped with large 9-core waterproof cable: outlet length 250+950MM, terminated with SM-6A connectors (wiring: 1-red, 2-yellow, 3-blue, 4-green, 5-black, 6-white). Features external 7-speed freewheel, disc brake compatibility, and built-in speed sensor with 1 magnetic steel.  長 ：250+950MM 壓端子 SM-6A（1 ：紅 2 ：黃 3 ：藍 4：

34

控制器

Controller

48V

2 號協議 正旋波   9 管控制器    25A 電流  功能要求 ：轉把：轉把不受檔位控制 助力：0-5 檔開機默認 1 檔前后燈由 多功能開關控制出大燈線 尾燈線 轉向燈 SM 插件

2nd protocol sine wave controller, 9-tube design, 25A current. Functional requirements:

? Throttle: Throttle operation independent of gear settings

? Pedal assist: 0-5 gears, default to gear 1 on startup

? Lights: Front and rear lights controlled by multi-function switch, with headlight and taillight wires; turn signal with SM plug-in

35

儀表Meter

P6

2 號協議 LCD 液晶面板 48V線長： 300 ㎜   不含防水插 件 0-5 檔,開機默認一檔黑色帶 USB 充電孔

P6, 2nd protocol LCD panel, 48V.

Wire length: 300mm (excluding waterproof plug).

0-5 gears, defaults to gear 1 when powered on.

Black color with USB charging port.

36

電池Battery

48V15AH

電芯 21700 配佳能二號電池盒充電孔 DC2.1 配放電線長 400mm 正負 4.0 子彈公頭 負 ：4.0 子彈母頭

Cell: 21700

With Canon No.2 battery box, charging port: DC2.1

Discharge wire length: 400mm

Positive: 4.0 bullet male connector

Negative: 4.0 bullet female connector

37

充電器Charger

鋰電充電器輸出48V/2A   充電口 DC2.1  電源插頭 UL

Lithium battery charger:

? Output: 48V/2A

? Charging port: DC2.1

? Power plug: UL certified

38

輔  料  類Auxiliary materials category

總成線

ssembly wire

一托四

One-to-four.

功能要求 ：儀表 ，剎把 ，轉把 上方出線不含防水插件

Functional requirements:

? Instruments, brake levers, throttles

? Cable outlet above the components (excluding waterproof plugs)

39

儀表線

Instrument cable

HT-F-Z509BG 五芯線長

HT-F-Z509BG five-core wire length.

40

剎把線

brake lever cable

HT-F-Z209BG 二芯線長

HT-F-Z209BG two-core wire length.

41

指撥線

trigger shifter cable

HT-F-Z309BG 三芯線長

HT-F-Z309BG three-core wire length.

42

水標

Water decal

水標   單套： 5.5 +開模  500

Water decal:Single set: 5.5 + mold opening fee 500

43

說明書

Instruction manual

全英文版 按客戶要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

44

小五金Hardware

見附表 1  Refer to Schedule 1.

45

烤漆Paint

電池盒+車架,2 遍底漆

Battery box + frame, two coats of primer.

46

扎帶（小）

Small cable ties

4*100

47

C 型線卡C-type cable clips

48

膠帶Tape

50*1000

49

珍珠棉Pearl cotton

1100*10

50

小內盒

Small inner box

長寬高 150*150*125

Length, width and height150*150*125

51

紙箱Carton

不含開版費

Excluding plate-making fee.
