1

操控類

Headset. Control Category

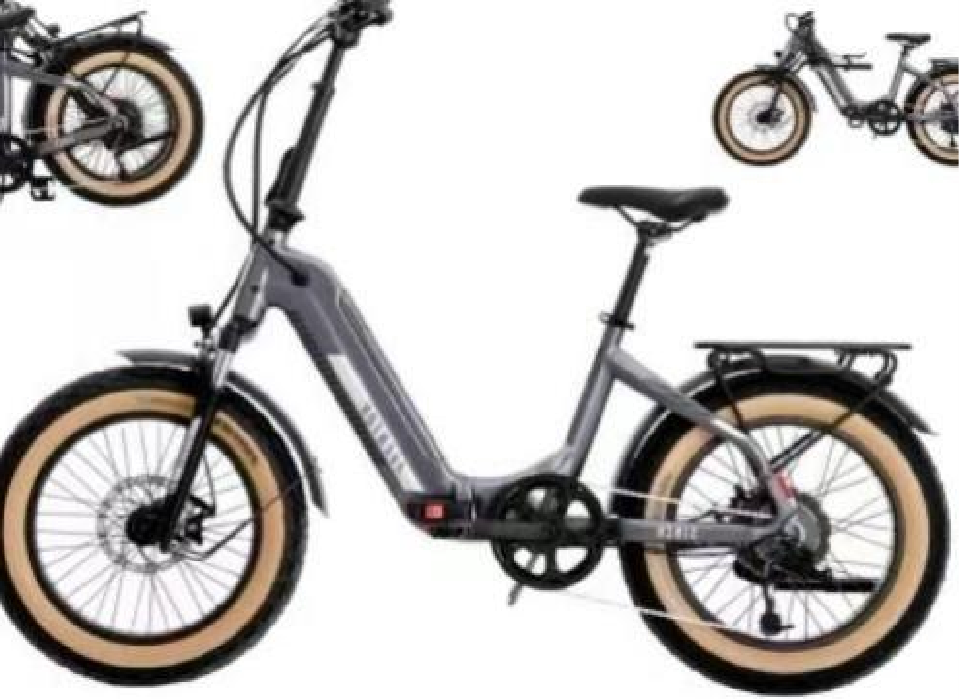

車架Frame

20 寸 ， 電機 550W ， 6061鋁 ，勾爪加厚 ，開檔依電機圖 紙 ，柱式安裝

20-inch, 550W motor, 6061 aluminum, thickened dropout, fork spacing according to motor drawings, column-mounted.

2

前叉Fork

FAT32-DH

鋁單肩前叉 20" 機械減震豎管尺寸 28.6x30 豎管總長度  230mm 無牙 叉腿直管長 600mm 兩夾板距 160mm 開檔 135 mm20-inch aluminum single-shoulder front fork with mechanical shock absorption

.? Steerer tube size: 28.6x30

? Total length of steer tube: 230mm (threadless)

? Straight leg length: 600mm

? Distance between two clamp plates: 160mm

? Fork spacing: 135mm

3

車頭碗Headset

KLB482

Φ28.6*44*30   H:14 附太陽花上壓蓋

Φ28.64430, H:14, with sunflower upper cover.

4

墊圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

170mm  A22  B120 C28  附外六角螺絲

170mm, A22, B120, C28, with hexagon socket head cap screws.

6

車把Handlebar

F-11

Φ22.2* Φ22.2* 680L  H:230

7

把立Stem

F-012

Alloyφ22.2 ×φ28.6 EXT:50 H:30

8

把套Handlebar grip

黑色 ，兩端帶鋁尾套 ，帶尾塞

Black, with aluminum end sleeves at both ends and end plugs.

9

鞍座Saddle

運動型鞍座 ，黑弓    Sport saddle, black rails.

10

鞍座管Seat post

Φ27,2 ， 300 長度 ，帶刻度啞黑

Φ27.2, length 300mm, with scale, matte black.

11

座管夾Seat post clamp

黑色 ， 30,4      Black, 30.4

12

腳踏Pedal

LU-984DU

107*96*28MM   2DU   硼鋼  塑料   散珠

1079628MM, 2DU, boron steel and plastic, loose balls.

13

剎車類

Brake Category

剎把Brake lever

鋁手柄縮仔黑色配 22.2 車把 ，二芯斷電線長不含防水插件 270mm(防水線我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

? Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

碟剎Disc brake

機械碟剎 F/R 碟盤:Φ180 ALLOY 主體烤漆霧黑色 前柱式按裝后側式按裝 附螺絲

Aluminum handlebar grip (shrunk type, black), compatible with 22.2mm handlebars.

? Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

15

傳動類

Transmission Category

齒盤Chainring

1/2 × 3/32"  48T 鐵齒+PVC 黑色半罩黑色鋁曲柄 170mm9/16"

1/2 × 3/32" 48T iron teeth + PVC, black half cover, black aluminum crankarms, 170mm, 9/16".

16

鏈條Chain

Z7

1/2 × 3/32 × 140L     PPO 接頭

1/2 × 3/32 × 140L, with PPO connector.

17

輪胎Tire

CY5176

20"*4.0" 電動車用    內外胎 A/V 嘴

20"*4.0" electric vehicle tire and inner tube with A/V valve.

18

前輪圈Front rim

XLM-04B

20” ，鋁圈。 13G*36 孔 AV 嘴

20", aluminum rim. 13G*36 holes with AV valve.

19

后輪圈Rear rim

XLM-04B

20” ，鋁圈。 12G*36 孔 AV 嘴

20", aluminum rim. 12G*36 holes with AV valve.

20

襯帶Tube

尼龍襯帶 20"*70W 對折長度 615mm

Nylon tube, 20"*70W, folded length: 615mm.

21

輻條前Front spokes

13G*175 ，黑色 ，附加長銅頭 SUS   4 交叉

13G*175, black, with extended copper head SUS, 4 cross.

22

輻條后Rear spokes

12G*129.5MM 長 ，黑色 ， 附加長銅頭 SUS   2 交叉

12G*129.5MM length, black, with extended copper head SUS, 2 cross.

23

前花鼓Front hub

FHXGM131-1

3/8*12G*36H *135W 175L  鋁： B47F  18.48 元/個

3/812G36H*135W 175L, aluminum: B47F, ￥18.48 each.

24

整車類

Vehicle Category

護板Guard plate

SP-01

黑色皮紋   Black leather texture

25

前泥板Front fender

20"4.0

前 ：弧長 350mm   吊耳距 130 PVC

Front: arc length 350mm, lug distance 130, PVC.

26

后泥板Rear fender

后 ：弧長 600mm  中孔距離 182mm PVC

Rear: arc length 600mm, center hole distance 182mm, PVC.

27

后椅架Rear rack

28

停車架Kickstand

20寸 ALLOY L215(鉚釘?shù)絻?nèi)側底端面）

20寸 ALLOY  L215 (from rivet to inner bottom end face)

29

指撥Shifters

30

前大燈

Front headlight

48V 帶外罩 帶喇叭 大燈和日行燈一起亮  網格十裝飾  不電鍍強光 線長 1200mm 帶 B 款 ED 支架配合 SM-3Y 插 件 （1 ：喇叭 2 ：負： 3 ：正）

48V with outer cover and horn. Headlight and daytime running light turn on simultaneously. Grid + decorative design, non-electroplated strong light. Wire length 1200mm, equipped with B-type ED bracket, compatible with SM-3Y insert (1: horn; 2: negative; 3: positive).

31

變速類

Transmission Category

變速轉把

Grip Shifter

ARDM310DLC

七速指撥 ， 山地車分體變速器

7-speed trigger shifter, mountain bike separate derailleur.

32

飛輪Freewheel

ASLM3157RC

七速旋飛輪 ，齒比 14,16,18,21,24,28T

7-speed freewheel, gear ratios 14, 16, 18, 21, 24, 28T.

33

撥鏈器Derailleur

AMFTZ5007428

七速后撥鏈器 ， 山地車通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

34

變速線Shift cable

SP

1890MM

35

輪反光片Wheel reflector

XPJ-4402-02,反射器,美標XPJ - 4402 - 02, reflector, compliant with US standards.

36

菜籃Basket

鋁菜籃Aluminum basket

37

電 器 類

Electrical Appliance Category

電機Motor

20 寸無刷高速有霍爾 ，負載 45KM/H 以上 ， 48V/350W  Φ 12 × 12G × 36H × 190*260 黑色外殼大九芯防水線  出線長 ：250+950MM 壓端子 SM-6A（1 ：紅 2 ：黃 3 ：藍 4： 綠 5 ：黑 6： 白） ， 外 7 速旋飛碟剎 內置速度 1 粒磁  鋼

20-inch brushless high-speed hub motor with hall sensors, capable of maintaining speeds over 45KM/H under load. Specifications: 48V/350W, Φ12×12G×36H×190*260 black casing. Equipped with large 9-core waterproof cable: outlet length 250+950MM, crimped with SM-6A terminals (1: red, 2: yellow, 3: blue, 4: green, 5: black, 6: white). Features external 7-speed freewheel, disc brake, and 1 built-in speed magnet.

38

控制器Controller

48V

2 號協議 正旋波 9 管控制器25A 電流  功能要求 ：轉把：轉把不受檔位控制 助力：0-5 檔開機默認 1 檔 前后燈由 多功能開關控制出大燈線 尾燈線   轉向燈 SM 插件2nd protocol, sine wave, 9-tube controller, 25A current.Functional requirements:

? Throttle: Uncontrolled by gear positions.

? Pedal assist: 0-5 gears, defaulting to gear 1 when powered on.

? Front and rear lights: Controlled by a multi-function switch, with headlight and taillight wires; turn signal with SM plug-in.

39

儀表Meter

P6

2 號協議 LCD 液晶面板   48V    線長： 300 ㎜   不含防水插 件 0-5 檔,開機默認一檔黑色帶 USB 充電孔2nd protocol LCD panel, 48V.

Wire length: 300mm.

Without waterproof plug-in.

0-5 gears, defaulting to gear 1 when powered on.

Black color with USB charging port.

40

電池Battery

48V10AH

電芯 21700 配佳能二號電池盒充電孔 DC2.1 配放電線長 400mm 正負 4.0 子彈公頭 負 ：4.0 子彈母頭

Cell: 21700  With Canon No.2 battery box charging port: DC2.1

Discharge wire length: 400mm

Positive: 4.0 bullet male connector

Negative: 4.0 bullet female connector

41

充電器harger

鋰電充電器輸出48V/2A   充電口 DC2.1  電源插頭國標

Lithium battery charger:Output: 48V/2A

Charging port: DC2.1 Power plug: GB standard (Chinese national standard)

42

輔 料 類

Auxiliary Material Category

總成線Assembly wire

一托四

One-to-four.

功能要求 ：面板 ，剎把 ，轉把上方出線不含防水插件長 100mm 主線長 850/200 不含插件

Functional requirements:

? Panel, brake lever, throttle: Upper outlet without waterproof plug-in, length 100mm.

? Main wire: Lengths 850mm and 200mm, without plug-ins.

43

儀表線

Instrument cable

HT-F-Z509BG 五芯線長 300mm 不含插件長

HT-F-Z509BG, 5-core wire, total length 300mm (excluding plug-in).

44

剎把線

brake lever cable

HT-F-Z209BG 二芯線長 300mm 不含插件長

HT-F-Z209BG, 2-core wire, total length 300mm (excluding plug-in).

45

轉把線Throttle cable

HT-F-Z309BG 三芯線長 320mm 不含插件長

HT-F-Z309BG, 3-core wire, total length 320mm (excluding plug-in).

46

水標Water decal

水標 單套： 5.5 +開模  500

Water decal: Single set: 5.5 + mold opening fee 500

47

說明書Instruction manual

全英文版 按客戶要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

48

小五金Hardware

見附表 1     Refer to Schedule 1.

49

烤漆Paint

電池盒+車架,2 遍底漆

Battery box + frame, two coats of primer.

50

扎帶（小）Small cable ties

4*100

51

C 型線卡C-type cable clips

52

膠帶Tape

50*1000

53

珍珠棉Pearl cotton

1100*10

54

小內盒Small inner box

長寬高 150*150*125    Length, width and height150*150*125

55

紙箱Carton

B20 FAT

7 層 1040×455 ×780內尺寸 印嘜頭

7 layers, inner dimensions 1040×455×780, print shipping marks.
