型 號:金卡,SHT2451
電 機:72V 1000W 電機
控制器:72V 智能化控制系統
電 池:72V 40Ah 三元鋰電池
顏 色:高級灰色標準色 ,客戶可定制

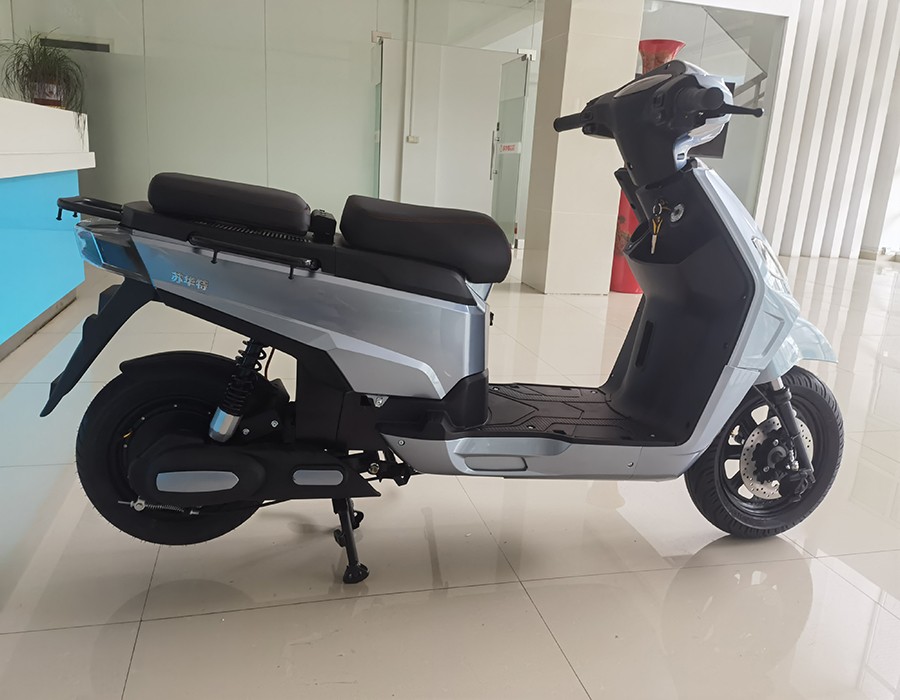

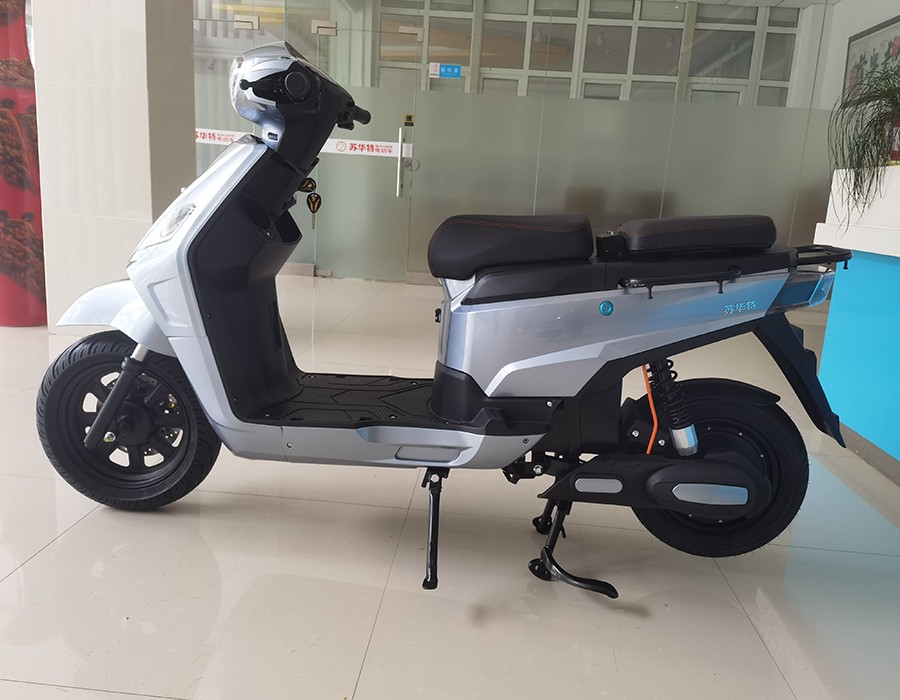

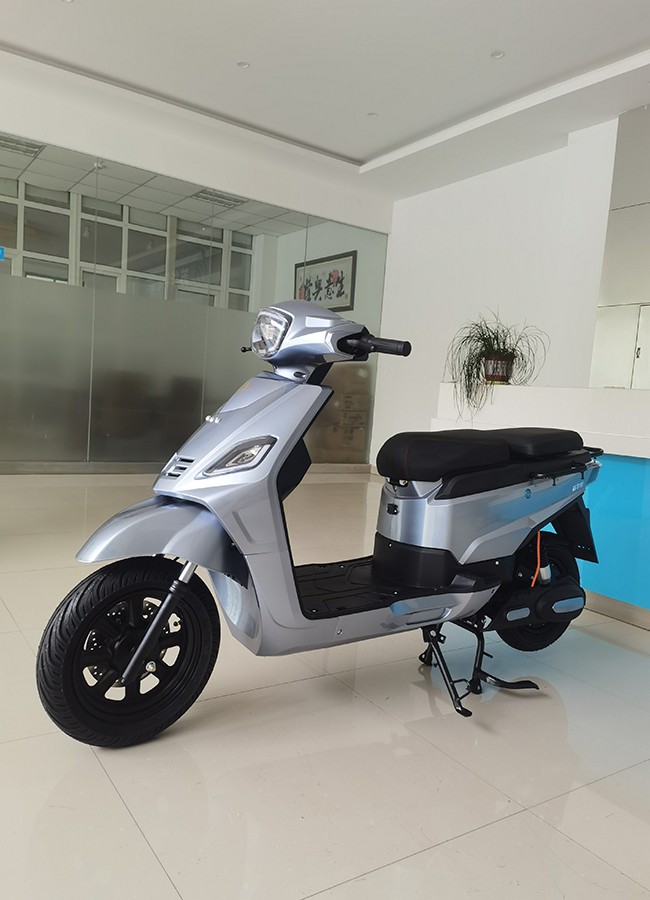

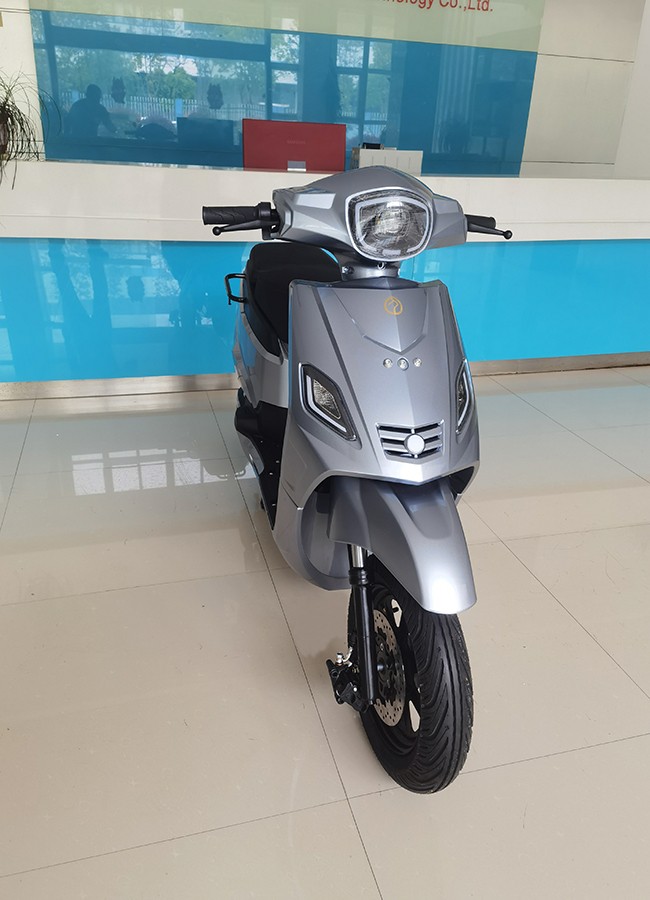

蘇華特 (金卡) SHT2451 電動摩托車 技術參數(出口型)
SUHUATE SHT2451 Electric Motorcycle Technical Parameters(Export Type)
產 品 Product | 名稱 Name | 電動兩輪摩托車 Electric Two-wheeled Motorcycle |
品牌 Brand | 蘇華特 SUHUATE | |
型號 Type | SHT2451 | |
電 器 系 統 Electrical system | 電控 Electric control | 72V 智能化控制系統;無級調速 ,制動斷電 ,欠壓保護 ,過 流保護等性能 ,穩定。72V 12 管 控制器 ,強勁快速。72V intelligent control system; It has stable performance features such as stepless speed regulation, power cut-off during braking,under-voltage protection, over-current protection, etc. A 72V 12-tube controller provides strong and rapid performance. |
電池 Battery | 72V 40Ah 三元鋰電池 72V 40Ah Ternary lithium battery | |
電機 Motor | 72V 1000W 電機;超大功率滿盤電機 ,動力持久強勁, 爬坡能力 ,載重能力強。72V 1000W motor; It is a super high-power full-disc motor, offering lasting and powerful performance, with strong climbing ability and high load-bearing capacity. | |
音響 Audio system | 電喇叭Electric horn | |
充電器 Charger | 72V 充電平穩、耐高溫With 72V, the charging process is stable and it can withstand high temperatures. | |
充電時間 Charging time | 6-8 小時 6-8hours | |
車 身 配 置 Body matching | 顏色 Color | 高級灰色標準色 ,客戶可定制Color:Advanced gray standard color, which can be customized by customers. |
車體 Body | 鋼制車架+塑料外殼 Steel frame + plastic shell | |
儀表臺 Dashboard | 多功能液晶數碼儀表盤 ,功能齊全Dashboard: Multi - function LCD digital instrument panel with complete functions. | |
車架 Frame | 微型車車架,高強度鋼結構件.The frame is of a micro-car type, made of high-strength steel structural parts. | |
燈光及信號 Lights and signals | 前照燈 ,前后轉向燈 ,組合后尾燈 ,電喇叭;凌厲霸氣的水 晶的前大燈 ,按照仿生學原理設計 ,外形更美觀 ,照明更安 全Headlights, front and rear turn signals, combined rear taillights, and an electric horn. The sharp and imposing crystal headlights are designed in accordance with the principles of bionics, featuring a more aesthetically pleasing appearance and ensuring safer illumination. | |
后視鏡Rearview mirrors | 左右各一手動型外后視鏡Rearview mirrors: One manual external rearview mirror on each of the left and right sides. | |
座椅 Seat | 整體式海綿外包皮革座椅 ,舒適耐用。Seat: Integrated sponge seat covered with leather, which is comfortable and durable. | |
底 盤 Bottom plate | 動力傳動系統 Power transmission system | 無級調速系統 Stepless speed control system |
驅動系統 Drive system | 后軸驅動Rear axle drive | |
制動系統 Brake system | 前碟剎,后碟剎 ,性能優越Front disc brake, rear disc brake, superior performance. | |
外形尺寸 長*寬*高(mm) Size Length * Width * Height (mm) | 1998×490× 1100 mm | |
整車裝備質量 Vehicle curb weight | 96kg | |
整車載荷 Vehicle load-carrying capacity | 200kg | |
軸距 Wheelbase | 1460 mm | |
輪胎 Tyre | 前輪:3.0-12 后輪3.0-10 ,耐磨防刺穿 ,品牌真空輪胎Front tire: 3.0-12 Rear tire: 3.0-10 Wear-resistant and puncture-proof Brand vacuum tire | |
額定乘員Rated passenger capacity | 2 人(含駕駛員) 2 persons (including the driver). | |
初速 30km/h 制動距離 Braking distance at an initial speed of 30km/h | ≤6.5 m | |
最大行駛速度Maximum travel speed | ≤50km/h | |
續駛里程 Range | ≤100Km | |
最大爬坡度 Maximum gradient | ≤20° | |
充電輸入電壓Charge input voltage | 220v | |
智能中控Smart central control | 智能中控對接租賃 Smart central control docking leasing |
