品牌

Brand

蘇華特

型號

Type

TDT093Z

電 器 系 統

電控

Electric control

48V智能化控制系統；無級調速，制動斷電，欠壓保護，過流保護等性能，穩定。48V 9管 控制器，強勁快速，自動修復。

48V intelligent control system; It has the performances such as steples speed regulation, power-off braking, undervoltage protection, overcurrent protection, etc., and features stable operation. The 48V 9-tube controller is powerful and fast, and it has the function of automatic repair.

電池

Battery

48V 40Ah 天能大容量磷酸鐵鋰電池，全國聯保。

48V 40Ah Tianneng large-capacity lithium battery, guaranteed nationwide.

電機

Motor

48V 1500W  永磁直流無刷電機；高效電機，動力強勁，高效節能，續航里程長。

48V 1500W permanent magnet DC brushless motor; It is an efficient motor with strong power, high efficiency and energy conservation, and it can provide a long driving range.

電路系統Circuit system

全車防水、阻燃插件，騎行更安全

Circuit system: The entire vehicle is equipped with waterproof and flame-retardant connectors, making the ride safer.

充電器charger

48V40Ah 鋰電充電器，耐用、安全、充電平穩、耐高溫

48V 40Ah lithium battery charger, durable, safe, with stable charging performance and resistant to high temperatures.

充電時間Charging time

6-8小時

Charging time: 6 - 8 hours

車 身 配 置

車體

Body

鋼制車架+塑料外殼；

Vehicle body: Steel frame + plastic shell

儀表

Instrument panel

多功能黑莓全面屏數碼儀表盤，功能齊全

Instrument: Multifunctional blackberry full-screen digital instrument panel, which is fully featured.

車架

Frame

鋰電車車架，高強度鋼結構件；整車采用大踏板，前后避震，結構硬朗、扎實、穩定。

The frame of the lithium-powered electric bicycle is made of high-strength steel structural components. The whole vehicle is equipped with a large pedal, front and rear shock absorbers, and features a tough, solid and stable structure.

前叉

Front fork

液壓帶阻尼無縫管材質，外加塑料防護套

Front fork: Made of seamless tube material with hydraulic damping, and equipped with a plastic protective sleeve.

燈光及信號

Lights and signals

透鏡LED大燈，前照燈，前左、右轉向燈：組合后尾燈，配置左、右轉向燈。電喇叭；凌厲霸氣的水晶的前大燈，按照仿生學原理設計，外形更美觀，照明更安全

Lens LED headlight, front headlight, front left and right turn signals: combined rear tail lights with left and right turn signals configured. Electric horn; The sharp and imposing crystal front headlight is designed according to the principles of bionics, which makes it more aesthetically pleasing in appearance and safer in illumination.

P檔

P gear

點動式開關，車輛啟動更安全

P gear: It is a jog-type switch, making the vehicle start more safely.

遙控器

防盜器

Remote controller and anti-theft device

配置智能化遙控器，智能化防盜器

Remote controller and anti-theft device: Equipped with an intelligent remote controller and an intelligent anti-theft device.

前減震

Front shock absorbe

無縫，阻尼，雙管液壓

Front shock absorber: seamless, damping, double-tube hydraulic。

后減震

Rear shock absorber

倒置結構，帶阻尼

Rear shock absorber: Inverted structure, with damping.

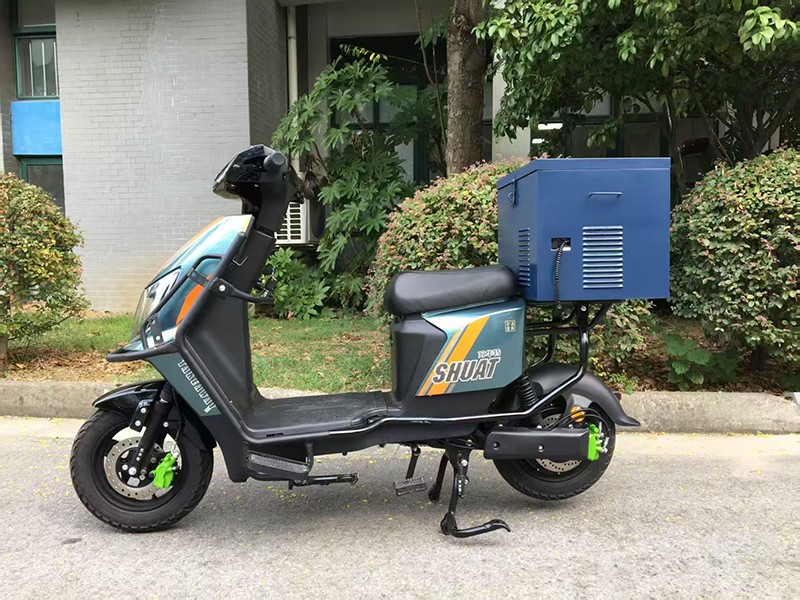

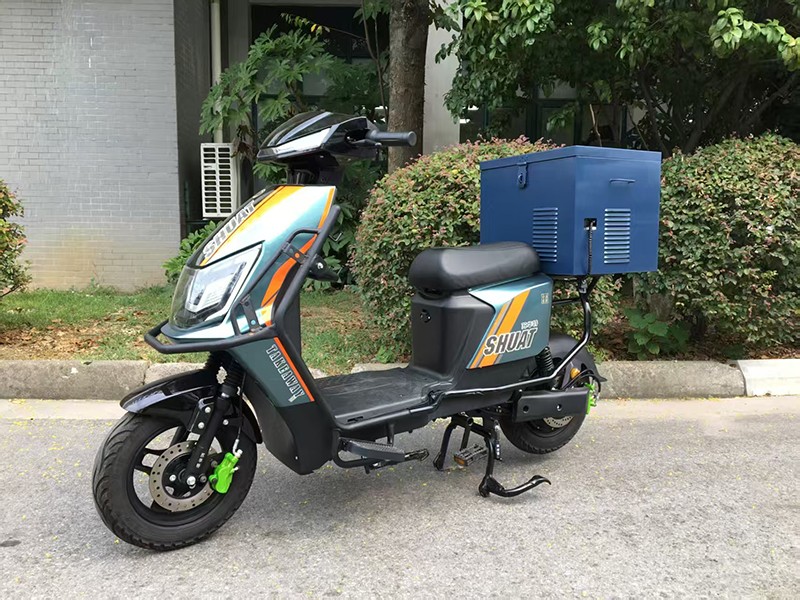

車尾箱

Rear trunk

外賣專用框

Rear trunk: Special frame for food delivery

底     盤

動力傳動系統

Power transmission syste

無級調速系統

Power transmission system: Stepless speed regulation system

驅動系統

Drive system

后軸驅動

Drive system: Rear axle drive

制動系統

Braking system

前碟剎,后碟剎，性能優越

Braking system:Front disc brake and rear disc brake, with superior performance.

外形尺寸 長*寬*高

Overall dimensions (Length×Width×Height, inmm)

1760mm×675mm×1090mm

Overall dimensions (Length×Width×Height, inmm):

1760mm×675mm×1090mm

軸距

Wheelbase

1250mm

Wheelbase:1250mm

輪胎

Tire

3.0-10 真空輪胎

Tire: 3.0 - 10 tubeless tire

額定乘員

Rated passenger capacity

1人

Rated passenger capacity: 1 person

制動距離

Braking distance

≤6.5 m

Braking distance: ≤6.5 m

最大行駛速度

Maximum driving speed

≤63km/h

Maximum driving speed: ≤63km/h

續駛里程

Range

≤80Km

Range: ≤80 km

最大爬坡度

Maximum gradability

≤20%

Maximum gradability: ≤20%

充電輸入電壓

Charging input voltage

220v

Charging input voltage: 220V
