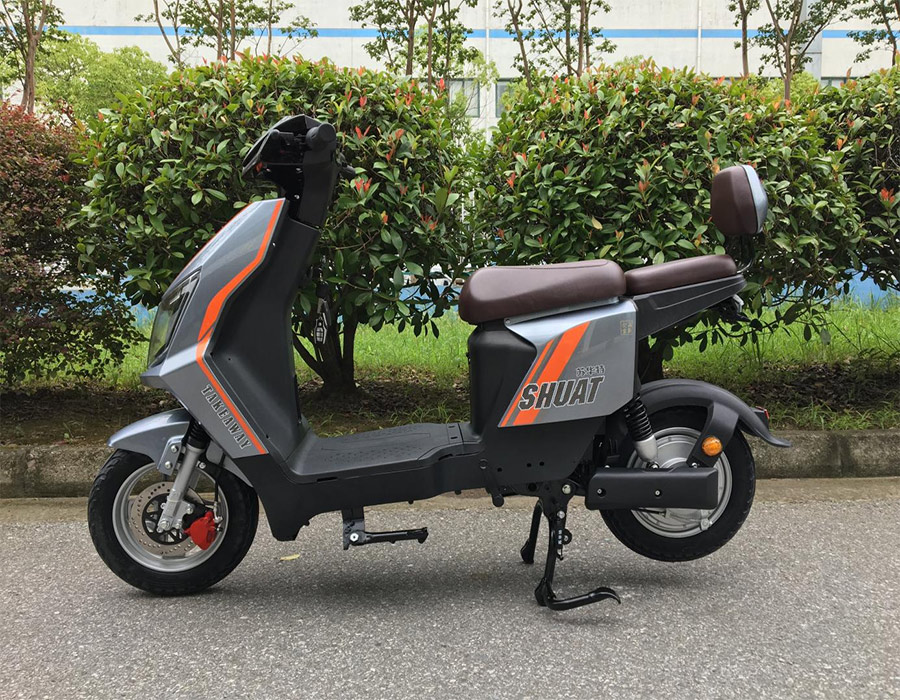

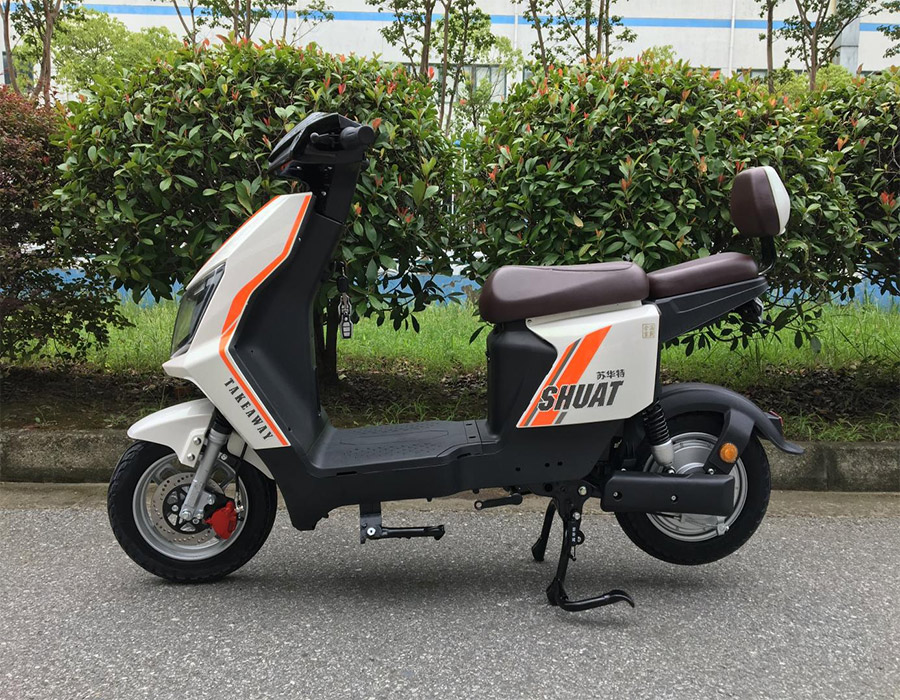

品牌

Brand

蘇華特

SUHUATE

型號

Type

TDT093Z

電 器 系 統   Electrical system

電控

Electric control

48V 智能化控制系統

60V 智能化控制系統

72V 智能化控制系統

48V intelligent control system

60V intelligent control system

72V intelligent control system

電池

Battery

48V 20Ah 鉛酸電池

60V 20Ah 鉛酸電池

72V 20Ah 鉛酸電池

48V 20Ah lead-acid battery

60V 20Ah lead-acid battery

72V 20Ah lead-acid battery

電機

Motor

48V 500W 高效電機

60V 500W 高效電機

72V 500W 高效電機

48V 500W high efficiency motor

60V 500W high efficiency motor

72V 500W high efficiency motor

電路系統

Circuit system

全車防水、阻燃插件，騎行更安全

Whole waterproof, flame retardant plug-in, more safe riding

充電器

Charger

鉛酸充電器，耐用、安全、充電平穩、耐高溫

Lead-acid charger, durable, safe, stable charging, high temperature resistance

充電時間

Charging time

6-8小時

6-8 hours

車 身 配 置   Body matching

車體

Body

鋼制車架+塑料外殼

Steel frame + plastic shell

儀表

Instrument panel

多功能黑莓全面屏數碼儀表盤，功能齊全

Multifunctional blackberry Full screen digital dashboard, full of features

車架

Frame

鉛酸專用車架，高強度鋼結構件；整車采用大踏板，前后避震，結構硬朗、扎實、穩定。

Lead-acid battery special frame; The whole vehicle adopts large pedal, front and rear shock absorber, the structure is strong, solid and stable.

前叉

Front fork

液壓帶阻尼無縫管材質，外加塑料防護套

Hydraulic belt damped seamless tube material, plus plastic protective jacket

燈光及信號

Lights and signals

透鏡LED大燈，前照燈，前左、右轉向燈：組合后尾燈，配置左、右轉向燈。電喇叭；凌厲霸氣的水晶的前大燈，按照仿生學原理設計，外形更美觀，照明更安全

Lens LED headlights, headlights, front left and right turn signals: combined rear taillights, equipped with left and right turn signals. Electric horn; The crystal headlights are designed according to the principle of bionics, which makes the appearance more beautiful and the lighting more safe

遙控器及防盜器

Remote control unit and burglar alarm

配置智能化遙控器，智能化防盜器

Intelligent remote control, intelligent anti-theft device

前減震

Front shock absorber

無縫，阻尼，雙管液壓

Seamless, damped, dual hydraulic

后減震

Rear shock absorber

倒置結構，帶阻尼

Inverted structure with damping

底 盤   Bottom plate

動力傳動系統

Power transmission system

無級調速系統

Stepless speed control system

驅動系統

Drive system

后軸驅動

Rear axle drive

制動系統

Brake system

前碟剎,后鼓剎，性能優越

Front disc brake, rear drum brake, superior performance

外形尺寸 長*寬*高(mm)

Size Length * Width * Height (mm)

1760mm×675mm×1090mm

軸距

Wheelbase

1250mm

輪胎

Tyre

3.0-10 真空輪胎

3.0-10 vacuum tires

制動距離

Braking distance

≤6.5 m

最大行駛速度

Maximum travel speed

≤43km/h

續駛里程

Range

48V 20Ah 鉛酸電池

48V 20Ah lead-acid battery

≤50Km

60V 20Ah 鉛酸電池

60V 20Ah lead-acid battery

≤60Km

72V 20Ah 鉛酸電池

72V 20Ah lead-acid battery

≤70Km

最大爬坡度

Maximum gradient

≤18°

充電輸入電壓

Charge input voltage

220v
